Khoom Description

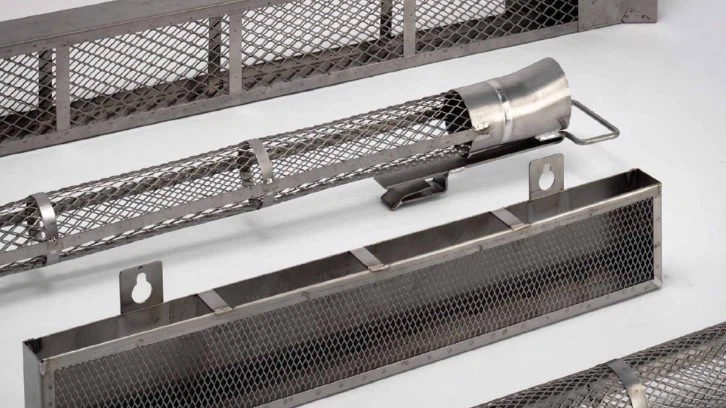

Titanium anode baskets yog ib qho ntawm cov khoom lag luam uas muaj titanium tshaj plaws niaj hnub no. Lawv yog tsim los ntawm fabricating titanium meshes, raj thiab nplooj ntawv, thiab lawv pab kom electrolytes ntws smoothly thiab yooj yim.
Muaj ntau ntau hom titanium anode pob tawb. Lawv tuaj hauv cov duab sib txawv thiab ntau thiab tsawg. Nov yog qee yam ntawm ntau hom:
* Circular yam anode pob tawb
* Semicircular yam anode pob tawb
* Rectangular hom anode pob tawb
* Cylindrical yam anode pob tawb
* Lub thoob hom anode pob tawb
* Vaj huam sib luag hom anode pob tawb
* Kev nthuav dav mesh anode pob tawb
* Perforated phaj hom anode pob tawb
* Square hom anode pob tawb
Titanium anode baskets tuaj yeem tsim nyob rau hauv ntau qib titanium nyob ntawm seb lawv yuav siv li cas. Cov titanium meshes siv los ua titanium anode baskets yuav ua tau zoo los yog ntxhib. Cov pob tawb loj tuaj yeem nyob ntawm ob nti mus rau 50 nti hauv qhov siab. Lawv tuaj yeem muaj txoj kab uas hla ntawm ib feem peb ntawm ib nti mus rau ob peb taw. Cov neeg siv khoom tuaj yeem thov cov tuam txhab tsim cov titanium anode pob tawb raws li lawv qhov ntev
| Cov khoom npe | Titanium anode pob tawb |
| Khoom siv | Ntshiab Gr1 lossis Gr2 titanium |
| Dimension | Length x Dav x Thickness 400x120x50mm, 500x130x55mm, 600x150x55mm, 700x175x60mm, 800x195x60mm, 900x215x65mm, 1000x250x65mm, 400x120x50mm, 500x130x55mm, 600x150x55mm, 700x175x60mm, 800x195x60mm, 900x215x65mm, 1000x250x65mm, 750 * 40 * 35mm 200 * 630 * 40mm, 250 * 1150 * 60mm, 250 * 700 * 50mm, 760 * 40 * 105mm, Los yog raws li tus neeg siv khoom tsim |
| Mesh Qhov Loj | 6 * 3mm, 5 * 4mm, 8 * 4mm, 10 * 5mm, 12.5 * 4.5mm |
| Qhov puab | rhombus los yog round |
| Txoj kev tsim khoom | Txiav, Bent, Welded |
Khoom nta
* Square nuv TIG welded rau topband rau siab tshaj plaws lub zog thiab ib tug taw tes tiv tauj.
* Heavy-duty topband 0.040" x 1.5" dav rau kev txhawb nqa zoo dua.
* Mesh tsim thiab tsis tu ncua qhov chaw welded rau kab rov tav thiab ntsug reinforcing bands
* Vertical band txhawb nqa 0.030" x 3/4" dav mounted 90 degrees los ntawm nuv kom tshem tawm shading.
* Cov hlua khi rau ntawm 12 "centerline 0.040" x 3/4" dav.
* Khoom hauv qab welded mus rau hauv qab band kom ntseeg tau siab tshaj plaws lub zog thiab cov kua dej kom zoo.
* Muab ob npaug rau Hooks welded thiab TIG welded rau sab saum toj band kom muaj zog tshaj plaws.
* Hooks txuas 2 "rau hauv pob tawb, thiab yog qhov chaw welded rau sab channel.
* Hnyav reinforcing sab saum toj band 0.060" x 1" dav.
* Mesh yog qhov chaw-welded rau ua tiav weld kev sib txuas rau bands thiab sab raws.
* Txhim kho cov hlua ntawm 12 "centerline 0.040" x 3/4" dav.
* Khoom siv sab channel tsim kom muaj zog thiab kav ntev.
* Channel bottoms pom welded rau hauv qab band thiab sab raws rau superior zog thiab kom zoo.
Daim ntawv thov
Electroplating kev lag luam:
1) Precious hlau plating (Ag, Au, Pd)
2) Hard chrome plating (Cr6 ntxiv)
3) Base hlau plating (Cu, Zn, Ni)
4) Precious hlau rov qab
Ntim
Ua siab zoo sau tseg:
1, Titanium pob lub qhov ncauj yuav tsum siab dua me ntsis qib 30-40mm, txhawm rau tiv thaiv qhov tawm ntawm anode residue
2, Titanium pob qhov kawg qhov kawg yuav tsum siab tshaj 100 ~ 150mm (ze ntawm sab saum toj yuav xav txog kev txhim kho shutters), thiaj li yuav zam qhov qis qis ntawm qhov tam sim no yog concentrated heev, ua rau hlawv.
3, Titanium pob tawb yuav tsum nyob rau hauv kev sib cuag nrog lub anode, lub anode muaj peev xwm txwv tsis pub titanium pob tawb ntawm lub ntse nce nyob rau hauv lub titanium pob tawb thiab chlorine evolution tshwm sim oxygen evolution cov tshuaj tiv thaiv, ua rau oxidative kev puas tsuaj thiab additives titanium pob tawb.
