Khoom Description
Sodium Chloride Electrolyzer rau Electro chlorinator
Sodium hypochlorite electrolysis module / Electrolytic Cell / Electrolyzer ua los ntawm peb lub tuam txhab tuaj yeem electrolyze dej ntsev kom tsim tau NaCLO nrog kev ua haujlwm siab electrolysis thiab tuaj yeem tsim cov concentration ntawm sodium hypochlorite.
Ua hauj lwm hauv paus ntsiab lus ntawm 50G / h 100G / h Sodium hypochlorite generator nrog Acrylic plhaub Precious Hlau Oxide Txheej Muaj ntshiab titanium substrate electrode teem electrolyzer electrolytic cell tank
Sodium chloride (NaCl) thiab dej (H2O) hauv cov dej ntsev yog ionized, thiab tom qab hluav taws xob, hydrogen (H2) thiab chlorine (Cl2) yog tsim los ntawm cathode thiab anode raws li. Cov hydroxide ions ntxiv ua ke nrog sodium ions los ua sodium hydroxide (NaOH), thiab cov roj chlorine reacts nrog sodium hydroxide los ua sodium hypochlorite (NaClO).
Qhov no sodium hypochlorite electrolysis module / Electrolytic Cell / Electrolyzer yog siv los tsim cov tshuaj sodium hypochlorite aqueous.
Electrolyzer rau kev tsim cov sodium hypochlorite
Tsim muaj peev xwm: 1000g / teev;
Cov ntsiab lus siab: 8000 ppm;
Electrode khoom: Titanium hauv Qib 1;
Txheej: MMO;
Txheej txheej: ob sab;
Vaj tse: pob tshab acrylic;
Lub neej ua haujlwm: 3 xyoos;
Daim ntawv thov: Electro-chlorinator.
muaj cov kws tshaj lij titanium electrolyzer, lawv tuaj yeem tsim hluav taws xob muaj peev xwm ntawm 50g / h txog 20000g / h. Lawv muaj cov kws tshaj lij engineer pab pawg, kev ua haujlwm lub neej, qhov loj me, txheej yog customizable.
Loj lag luam nplai
dav siv technology
high-quality customized kev pab cuam
Siab zoo
cov cuab yeej siv siab heev
pab neeg tshaj lij
ib-stop daws
Product details

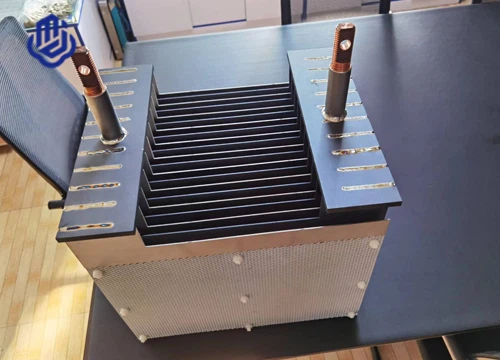

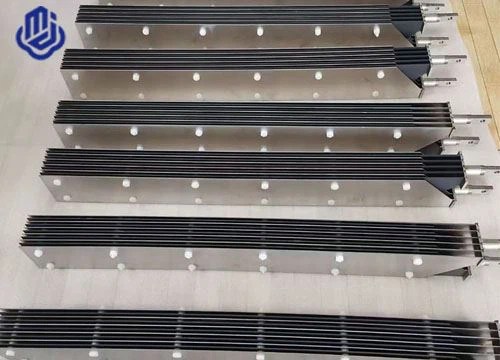

Titanium electrolytic cell
Muaj feem xyuam rau lub cell electrolytic los ua sodium hypochlorite los ntawm electrolysis ntawm brine xws li brine los yog dej hiav txwv dej, thiab tshwj xeeb tshaj yog, ib tug separator rau faib lub internal qhov chaw ntawm lub hollow vaj tse nyob rau hauv ib tug ntau ntawm electrode chambers; electrolytic cell configured tuav daim hlau ntawm ib ntus.
Kev tsim ntawm sodium hypochlorite
Xws li sodium hypochlorite yog tsim los ntawm electrolyzing ib tug natural los yog hluavtaws tov, feem ntau muaj brine, dej hiav txwv los yog sodium chloride. Ntawd yog, thaum brine yog electrolyzed los ntawm kev siv lub tshuab electrolysis, chlorine (Cl 2) yog tsim los ntawm cov tshuaj tiv thaiv oxidation ntawm anode thiab sodium hydroxide (NaOH) thiab hydrogen los ntawm kev txo cov tshuaj tiv thaiv ntawm cathode. (H 2) roj yog tsim, thiab sodium hydroxide (NaOH) thiab chlorine (Cl 2) react dua los tsim sodium hypochlorite (NaOCl).
Kev lag luam, cov cuab yeej tsim tawm sodium hypochlorite siv cov tshuaj tiv thaiv electrolytic saum toj no feem ntau yog tsim los ntawm cov khoom siv brine thiab cov khoom siv hluav taws xob rau electrolyzing brine, nyob rau lub sijhawm no hauv ntau hom kev txhim kho cov tshuaj tiv thaiv electrolytic. Tau tsim.
Electrolytic ntsev dej
Kev lag luam, cov cuab yeej tsim tawm sodium hypochlorite siv cov tshuaj tiv thaiv electrolytic saum toj no feem ntau yog tsim los ntawm cov khoom siv brine thiab cov khoom siv hluav taws xob rau electrolyzing brine, nyob rau lub sijhawm no hauv ntau hom kev txhim kho cov tshuaj tiv thaiv electrolytic. Tau tsim.
non-diaphragm hom electrolytic cell
Cov qauv ntawm cov hluav taws xob hluav taws xob yog lub hau npog yog muab rau ntawm ob qho kawg ntawm PVC vaj tsev ib qho kawg ntawm qhov tsis zoo davhlau ya nyob twg thiab nws cov connector, thiab lwm qhov kawg ntawm qhov zoo davhlau ya nyob twg thiab nws cov connector raug ntsia raws li.
Khoom parameter
perating tej yam kev mob ntawm 100G / h Sodium hypochlorite generator nrog Acrylic plhaub Precious Hlau Oxide Txheej Muaj ntshiab titanium substrate electrode teem electrolyzer electrolytic cell tank
1. Electrolytic nruab nrab: Cov dej ntshiab los yog dej ntsev ua los ntawm cov dej demineralized, nrog rau salinity ntawm 1% -5%.
2. Dej kub ntau: 5 ~ 50 ºC
| Kev tsim cov tshuaj chlorine | Qhov hluav taws xob | Tam sim no | Hwj chim |
| 50g/h | 4-10V | 30A | 210W |
| 100g/h | 8-16V | 40A | 440W |
| 200g/h | 12-18V | 65A | 950W |
| 300g/h | 15-24V | 80A | 1500W |
| 500g/h | 18-32V | 105A | 2500W |
| 1000g/h | 24-36V | 130A | 3600W |
| 2000g/h | 32-48V | 240A | 7400W |
Lus Cim: Cov tam sim no thiab qhov hluav taws xob saum toj no yog cov ntaub ntawv siv rau kev kuaj sim, vim tias qhov siab dua cov ntsev ntsev, qhov hluav taws xob qis dua thaum lub sijhawm ua haujlwm tam sim no, thiab qhov ntsuas yuav tsum tau hloov kho raws li kev siv tiag tiag.
4. Ua haujlwm siab: 0 07 ~ 2.0kgf/cm2
5. Dej siab tsis kam: Thaiv lub qhov hluav taws xob, siv dej siab ntawm 5.0kgf/cm2 rau ib feeb, tsis muaj dej to
6. Qhov hluav taws xob khiav: 60L / h ~ 1000L / h
7. Cia tej yam kev mob: kub thiab txias.
8. Siv tau chlorine concentration: 1000 ~ 9000mg / L.
9. Cov tshuaj chlorine zoo yuav hloov nrog kev ua haujlwm tam sim no thiab voltage, dej ntau lawm, ntsev concentration thiab lwm yam. Koj tuaj yeem sim thiab txiav txim siab qhov tsis muaj thiab tom qab ntawd teeb tsa cov khoom siv sib txuas
Yam khoom
Khoom zoo ntawm 100G / h Sodium hypochlorite generator nrog Acrylic plhaub Precious Hlau Oxide Txheej Muaj ntshiab titanium substrate electrode teem electrolyzer electrolytic cell tank
1. Corrosion kuj
2. Lub neej ntev
3. kev ua haujlwm ruaj khov.
4. Customizable
5. Cov tub ntxhais electrolytic cell electrodes yog tsim los ntawm nws tus kheej, siv kev lag luam ntshiab titanium ua cov khoom siv hauv paus, thiab tsim cov txheej txheem ntawm ntau yam hlau oxide txheej.
6. Pob tshab acrylic plhaub nrog cov qauv yooj yim & Cov qauv tsim nyog, kev saib xyuas yooj yim.
7. High electrolysis efficiency, muaj peev xwm ua tau siab concentration ntawm sodium hypochlorite
Khoom siv ntawm 100G / h Sodium hypochlorite generator nrog Acrylic plhaub Precious Hlau Oxide Txheej Muaj ntshiab titanium substrate electrode teem electrolyzer electrolytic cell tank
Bleaching, industrial wastewater kho, papermaking, textiles, pharmaceuticals, zoo tshuaj, huv si, thiab lwm yam.
xaiv & shipping
Ntim
Txhua yam khoom yog them nrog ib lub hnab npuas, cais nrog ib daim ntawv riam los yog ib tus zuj zus ntim.
Kev xa khoom
Los ntawm hiav txwv, los ntawm huab cua, los ntawm courier thiab lwm yam.
koj puas muaj lus nug?
Koj puas yog ib lub tuam txhab kev lag luam lossis cov chaw tsim khoom?
tau ua cov chaw tsim khoom tshwj xeeb hauv Titanium hlau cov khoom xws li Sodium hypochlorite electrolyzer / electrolytic cell, Platinum-coated titanium electrode, Ruthenium Iridium Coated Titanium Electrode, Iridium Tantalum Coated Titanium Electrodes thiab lwm yam txij li xyoo 2010. Txais tos tuaj xyuas peb lub Hoobkas!
Kuv yuav tso qhov kev txiav txim li cas?
Thaum koj txaus siab rau peb cov lus hais, peb yuav muab Proforma Invoice rau koj qhov kev pom zoo. Kev lees paub kev lag luam kuj tau txais. Tom qab tau txais cov nyiaj them ua ntej, peb yuav pib tsim khoom.
Koj lub sijhawm ua haujlwm ntev npaum li cas?
Yog tias cov khoom nyob hauv Tshuag, peb tuaj yeem xa lawv tawm rau hnub ua haujlwm ze tshaj plaws. Feem ntau hais lus, lub sijhawm ua haujlwm yog 15 hnub.
